The Take-Up and Winding System: Delivering Consistent Fabric Dimensions

1 juego
MOQ
negotiable
Precio
The Take-Up and Winding System: Delivering Consistent Fabric Dimensions
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Tipo de producto: Máquina para fabricar redes de sombra
Color: Personalizado
Ancho de trabajo: 135" - 260"
Velocidad: 200 a 450 rpm
Tamaño: los 2m/2.5m/3.4m/3.8m/4.5m/5.5m/6m/6.6m/8.6m/9.6m/11m
Garantía: 1 año (apoyo técnico de por vida)
Resaltar:

shade net making machine with take-up system

,

fabric winding system for shade nets

,

consistent dimension shade net machine
Información básica
Lugar de origen: China, Jiangsu
Nombre de la marca: Chenye
Certificación: ISO ,CE, TUV
Número de modelo: SRCA
Pago y Envío Términos
Detalles de empaquetado: 40HQ/Set
Tiempo de entrega: 60 días después del pago del depósito
Condiciones de pago: LC, T/T, Unión Occidental
Capacidad de la fuente: 25 conjuntos por mes
Descripción de producto

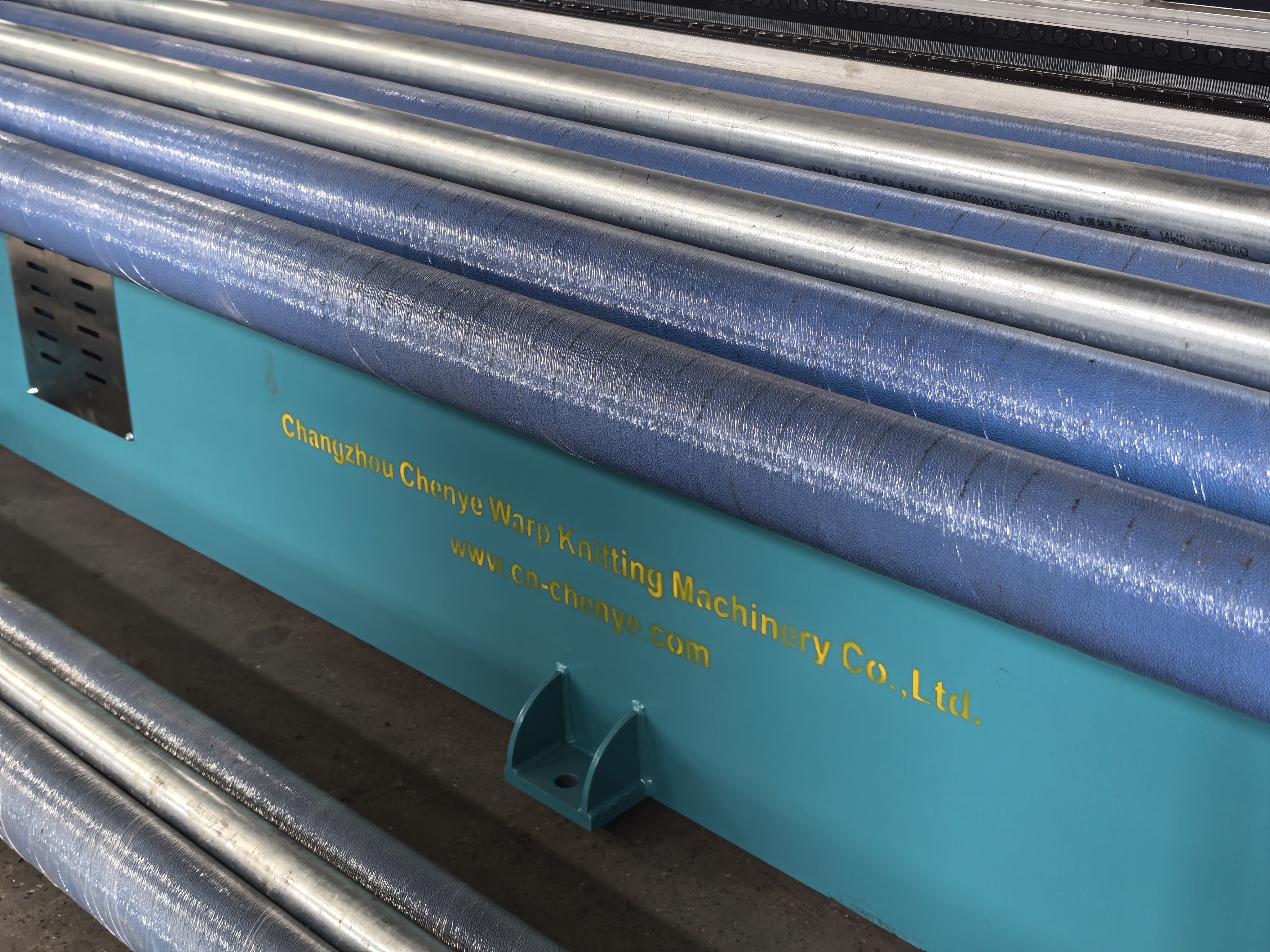

The Take-Up and Winding System: Delivering Consistent Fabric Dimensions

After the knitting process is completed, the take-up and winding system is responsible for pulling the fabric away from the knitting zone and winding it into finished rolls. This system plays a crucial role in determining fabric width, density, and overall product consistency.


The take-up system must operate in perfect synchronization with the knitting elements to maintain stable fabric tension. Any mismatch in speed can affect fabric quality and lead to dimensional inconsistencies.


Chenye Warp Knitting Machinery utilizes precision-engineered take-up and winding systems that provide smooth fabric transport and reliable roll formation. These systems are designed to support high-speed production while maintaining product quality.

Machine Parameters
Type Size (L*W*H) Weight (Kg) Power (KW) Speed (rpm)
SRCA-135 4300*2200*2700 4700 3 200-530
SRCA-150 4900*2200*2700 5000 3 200-530
SRCA-180 6100*2200*2700 7500 5.5 200-530
SRCA-220 7300*2200*2700 9000 5.5 200-530
SRCA-260 8200*2200*2700 11000 7.5 200-480
SRCA-340 10300*2200*2700 14000 11 200-450
Applications & Purpose
Shade net machines produce specialized netting material used in agricultural settings, nurseries, gardens, and outdoor areas to create controlled environments with optimal growing conditions.
Primary Benefits:
  • Sunlight Protection: Reduces sunlight intensity to prevent overheating and create favorable microclimates
  • Temperature Control: Maintains lower temperatures by filtering sunlight for plant, animal, and human comfort
  • Wind and Dust Barrier: Acts as windbreak to reduce wind speed and prevent dust in sensitive areas
Technical Support & Services
We provide comprehensive technical support and service for our Shading Net Making Machine to ensure optimal performance and longevity.

The Take-Up and Winding System: Delivering Consistent Fabric Dimensions 0

Packing & Shipping
We ensure complete safety and security of all goods during packing and shipping processes.
Secure machine packaging Shipping preparation
Frequently Asked Questions
What is the output of shading net making machine?
Depending on machine working width and net technical specifications, output is approximately 500-1000KG/24h.
How much space needed to set up a shading net production line?
A small-scale production line requires 100-200 square meters, while larger operations may need several thousand square meters for machinery, raw materials, and finished products storage.
How many kinds of shading net can be produced by rascheal warp knitting machine?
Four types of shade nets can be produced: mono+mono yarn shading net, mono+flat yarn shading net, mono+flat yarn shade net, and Al+pet yarn shade net.
Are the machines customizable for different net specifications?
Yes, modern shading net making machines are customizable to produce nets of various sizes, mesh configurations, and materials with adjustable machine settings.
What types of shading nets material can be made with these machines?
Primary material is HDPE, with some shading nets using AL and PET materials.
Are there any special skills required to operate the machine?
Operating requires training for optimal performance. We provide comprehensive training sessions and manuals covering setup, operation, and maintenance procedures.
