Computerized Raschel Warp Knitting Machine with 3-Rollers Positive Yarn Let-Off System and E6/E7/E8/E9/E12/E14 Gauge for 135-340" Working Width

1
MOQ
$25,000
Precio
Computerized Raschel Warp Knitting Machine with 3-Rollers Positive Yarn Let-Off System and E6/E7/E8/E9/E12/E14 Gauge for 135-340" Working Width
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Fuerza: 7500 W
Estilo de punto: Urdimbre
Método de tejido: soltero
Computerizado: Sí
Dimensiones: 6100*2300*2800
Indicador: 1.5 gg, 3 gg, 7 gg, 2 gg, 16 gg, 5 gg, 10gg, 2.5gg, 3-5-7 multimage
Ancho de tejido: 100 pulgadas
Ancho de trabajo: 135-340 "
Velocidad: 200-480rpm
Número de barras: 2-6
Peso: 15000 KG
Tipo de aguja: Aguja de pestillo
Velocidad máxima: 200-530rpm
Potencia del motor principal: 3-11kw
Potencia del motor lento: 0.37-1.5kw
Resaltar:

3-Rollers Positive Yarn Let-Off System Raschel Warp Knitting Machine

,

E6/E7/E8/E9/E12/E14 Gauge Raschel Warp Knitting Machine

,

135-340" Working Width Raschel Warp Knitting Machine
Información básica
Lugar de origen: Jiangsu, China
Nombre de la marca: chenye
Pago y Envío Términos
Descripción de producto

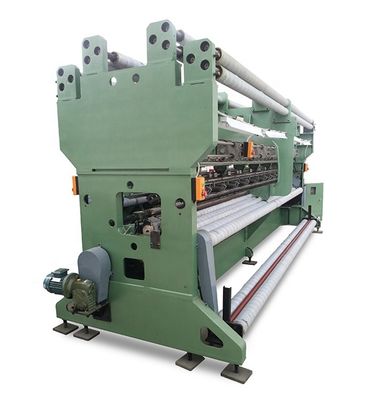

Raschel Warp Protecting Net Knitting Machine
Product Applications

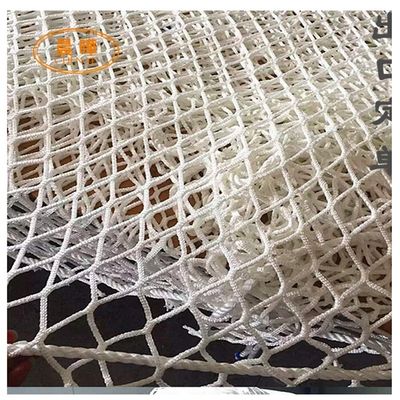

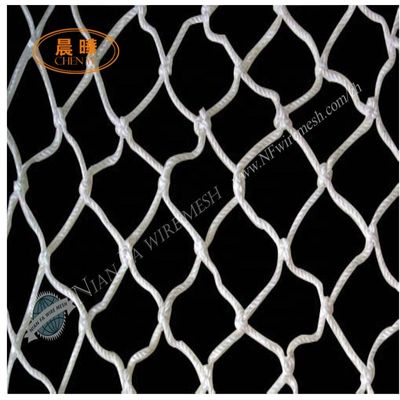

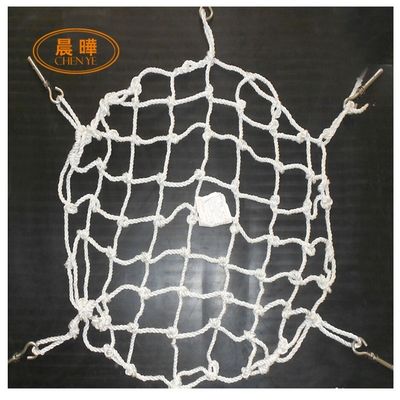

This high-performance machine is designed for manufacturing various types of nets including:
  • Knotless fishing nets
  • Protective safety nets
  • Purse nets
  • Garment nets
  • Shading nets
Compatible Materials
Works efficiently with:
  • HDPE (High-Density Polyethylene)
  • Polypropylene
  • Polyester
Technical Specifications
  • Model: Single needle bar warp knitting machine
  • Needle type: Latch needle
  • Gauge: E6/E7/E8/E9/E12/E14 (needles/inch)
  • Working width: 135-340 inches
  • Guide bars: 2-6 bars
  • Let-off mechanism: Open cam gearing with 3-roller positive yarn let-off system
  • Take-up: 2 rollers with friction drive, center shaft drive
  • Max speed: 200-530 rpm
  • Drive motor: Main 3-11kW, slow speed 0.37-1.5kW
  • Production capacity: 500-8000kg/24hrs
  • Machine weight: 4500-14000kg/set
Key Advantages
  • Simple, user-friendly structure for easy operation
  • Integrated automatic stop system
  • Cam-driven mechanism ensures stable performance
  • Main motor with conversion control and stepless speed regulation
  • Standard fittings included
Machine Models Comparison
Main Type Machine Size (mm) Weight (kg) Main Motor Power Inching Motor Power Speed (rpm)
SRCA-135 4300×1700×2300 4500 3kW 0.37kW 200-530
SRCA-150 4900×1700×2300 5000 4kW 0.37kW 200-530
SRCA-180 6100×1700×2400 7500 5.5kW 0.75kW 200-530
SRCA-220 7300×1700×2400 9000 5.5kW 1.5kW 200-500
SRCA-260 8200×1700×2400 11000 7.5kW 1.5kW 200-480
SRCA-340 10300×1700×2400 14000 11kW 1.5kW 200-450
Packaging & Shipping
Standard packaging includes wooden boxes (L×W×H dimensions). For European exports, wooden boxes are fumigated. Alternative packaging options available for tight container spaces or special customer requirements.
Computerized Raschel Warp Knitting Machine with 3-Rollers Positive Yarn Let-Off System and E6/E7/E8/E9/E12/E14 Gauge for 135-340" Working Width 0 Computerized Raschel Warp Knitting Machine with 3-Rollers Positive Yarn Let-Off System and E6/E7/E8/E9/E12/E14 Gauge for 135-340" Working Width 1 Computerized Raschel Warp Knitting Machine with 3-Rollers Positive Yarn Let-Off System and E6/E7/E8/E9/E12/E14 Gauge for 135-340" Working Width 2
Our Services
  • 24-hour response to customer inquiries
  • Professional technical support in fluent English
  • Customized design and OEM/ODM services available
  • Direct manufacturer pricing with quality assurance
  • Expert engineering solutions from trained professionals
Company Information
We are a specialized manufacturer of warp knitting machinery with strong R&D capabilities. Our 14,000 sq.m facility employs over 60 staff, including experienced engineers. Through technical cooperation with Jiangnan University, we incorporate advanced technology into our machines. Our products are exported worldwide, achieving high customer satisfaction in markets including India, Vietnam, Indonesia, Bangladesh, and Egypt.
Computerized Raschel Warp Knitting Machine with 3-Rollers Positive Yarn Let-Off System and E6/E7/E8/E9/E12/E14 Gauge for 135-340" Working Width 3 Computerized Raschel Warp Knitting Machine with 3-Rollers Positive Yarn Let-Off System and E6/E7/E8/E9/E12/E14 Gauge for 135-340" Working Width 4 Computerized Raschel Warp Knitting Machine with 3-Rollers Positive Yarn Let-Off System and E6/E7/E8/E9/E12/E14 Gauge for 135-340" Working Width 5
Frequently Asked Questions
Q: Are you a manufacturer or trade company?
A: We are a professional manufacturer with our own international trade department, allowing us to better understand customer needs and offer competitive pricing.
Q: Can we visit your factory?
A: We welcome all potential long-term partners to visit our facility for first-hand evaluation of our production capabilities.
Q: Is the price negotiable?
A: We offer fair pricing for all clients, with adjustments possible based on order volume.
Q: How do you ensure quality?
A: Our professional assembly line and strict quality control system guarantee high-quality production.
Q: What after-sales services do you provide?
A: We offer comprehensive after-sales support, including overseas service by our engineers when needed.
Computerized Raschel Warp Knitting Machine with 3-Rollers Positive Yarn Let-Off System and E6/E7/E8/E9/E12/E14 Gauge for 135-340" Working Width 6 Computerized Raschel Warp Knitting Machine with 3-Rollers Positive Yarn Let-Off System and E6/E7/E8/E9/E12/E14 Gauge for 135-340" Working Width 7
